AUTOMATIC SPRINKLER SYSTEM
UL Listed Automatic Sprinkler

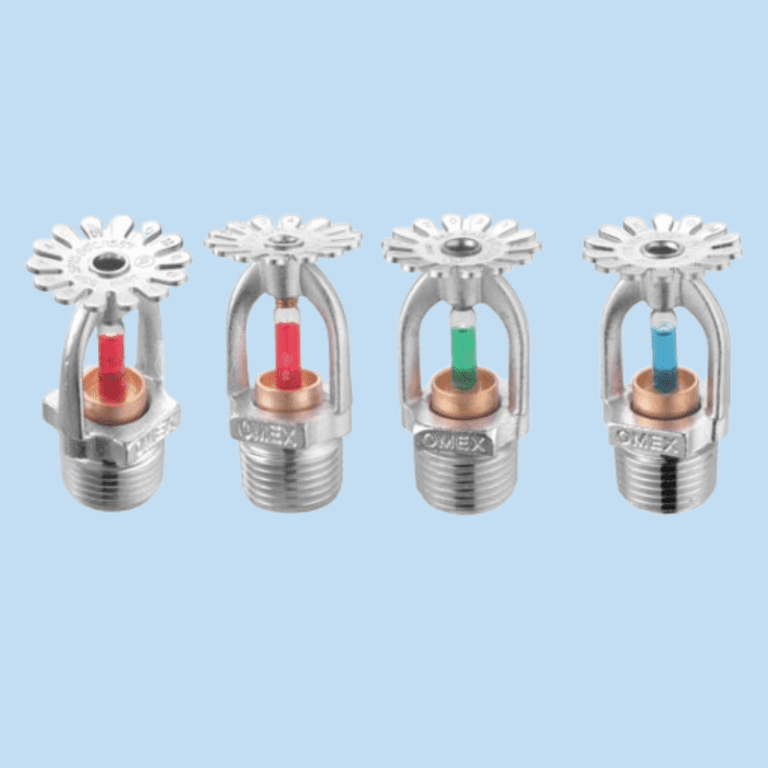

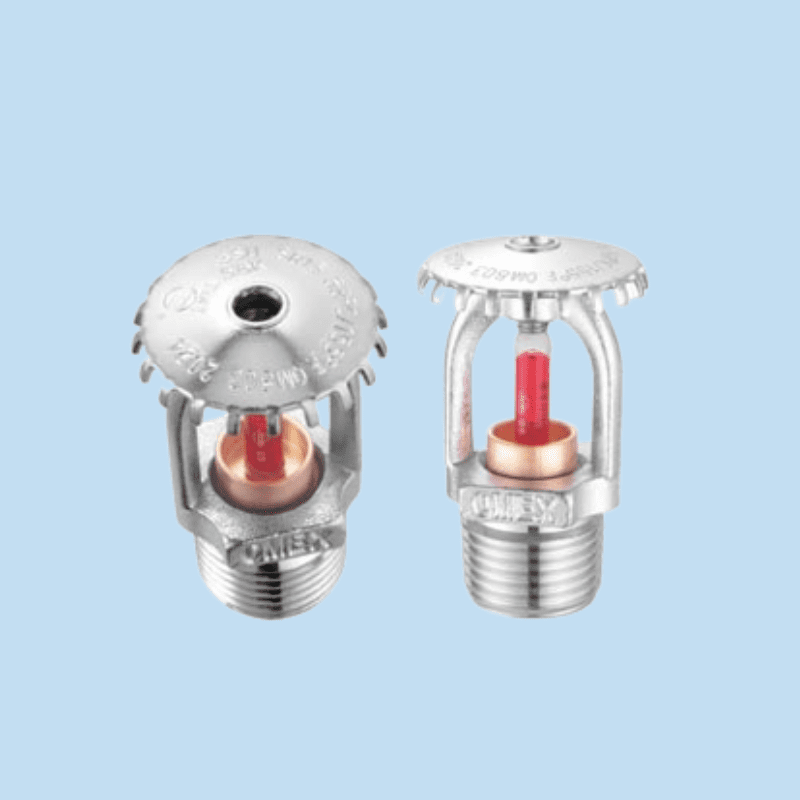

PENDENT TYPE SPRINKLER
- Temprature Rating : 68°C, 79°C, 93°C & 141°C
- Glass Bulb Colour : Red, Yellow, Green & Blue
- Thread Size : NPT1/2” or Rl/2”
- Max. Service Pressure : 175psi
- Glass Bulb Diameter(mm) : 05 / 03
- Response : SR / QR
UPRIGHT TYPE SPRINKLER
- Temprature Rating : 68°C, 79°C, 93°C & 141°C
- Glass Bulb Colour : Red, Yellow, Green & Blue
- Thread Size : NPT1/2” or Rl/2”
- Max. Service Pressure : 175psi
- Glass Bulb Diameter(mm) : 05 / 03
- Response : SR / QR

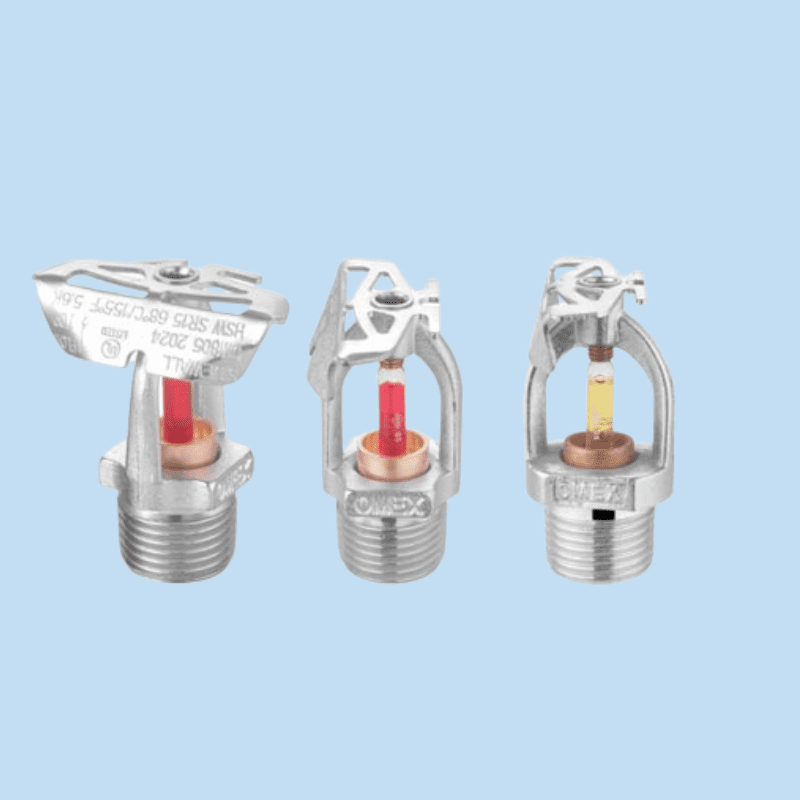

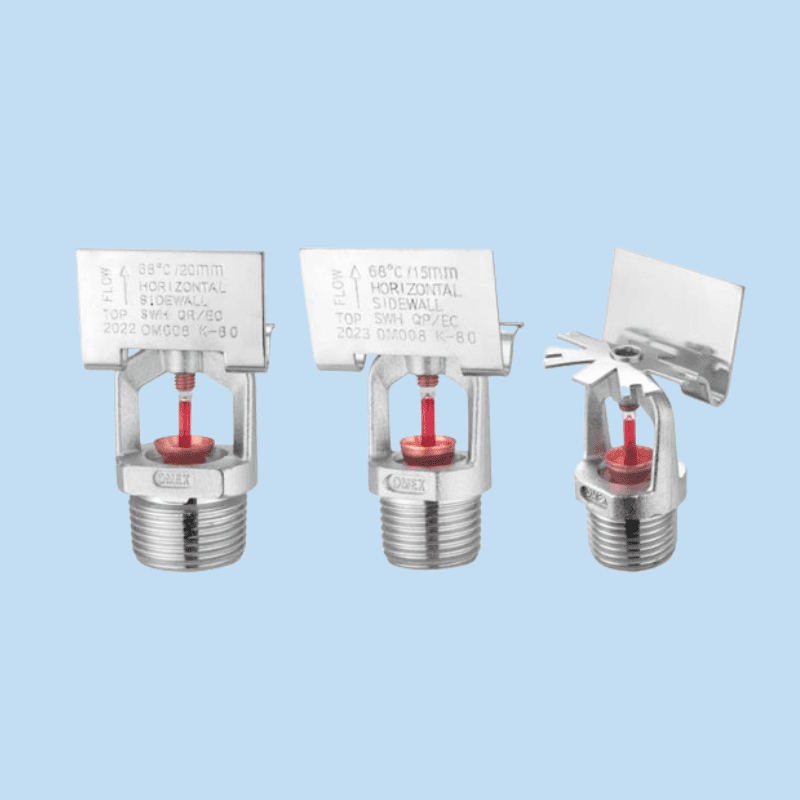

SIDEWALL TYPE SPRINKLER
- Temprature Rating : 68°C, 79°C, 93°C & 141°C
- Glass Bulb Colour : Red, Yellow, Green & Blue
- Thread Size : NPT1/2” or Rl/2”
- Max. Service Pressure : 175psi
- Glass Bulb Diameter(mm) : 05 / 03
- Response : SR / QR

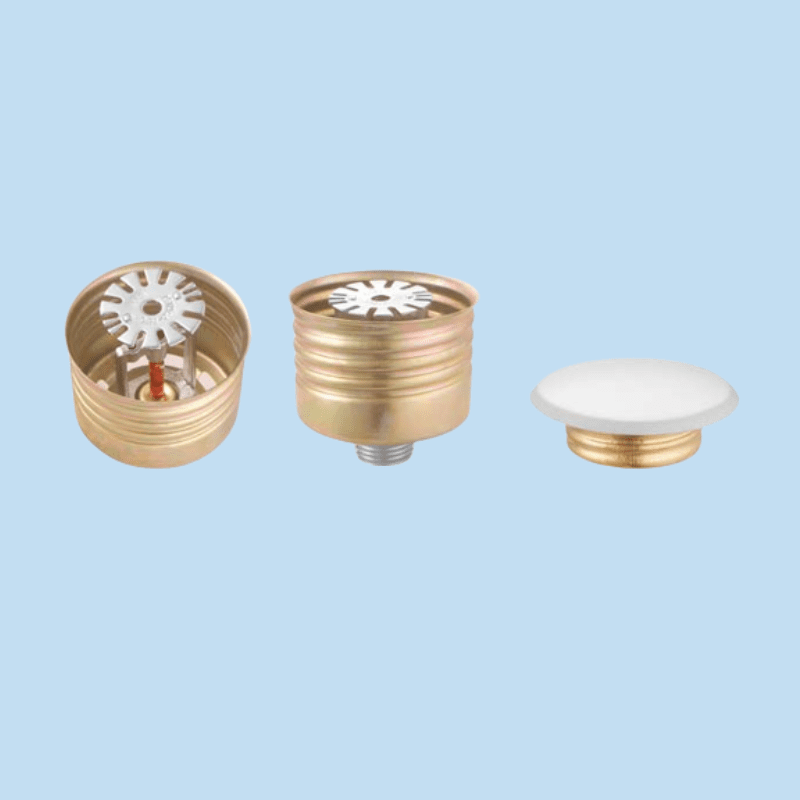

CONCEALED TYPE SPRINKLER
- Temprature Rating : 68°C
- Glass Bulb Colour : Red
- Thread Size : NPT1/2” or Rl/2”
- Max. Service Pressure : 175psi
- Glass Bulb Diameter(mm) : 05 / 03
- Response : SR / QR
Automatic Sprinkler & Nozzles
SIDEWALL EXTN. THROW TYPE SPRINKLER
- Temprature Rating : 68°C
- Glass Bulb Colour : Red
- Thread Size : NPT1/2” or 3/4”
- Max. Service Pressure : 175psi
- Glass Bulb Diameter(mm) : 03
- Response : QR
FLUSH TYPE SPRINKLER
- Temprature Rating : 155°F/68°C
- Glass Bulb Colour : Fusible alloy
- Thread Size : NPT1/2” or Rl/2”
- Max. Service Pressure : 175psi
- Response : QR
- Uses : Multi Type (Concealed & Pendent)
- Finish :Chrome

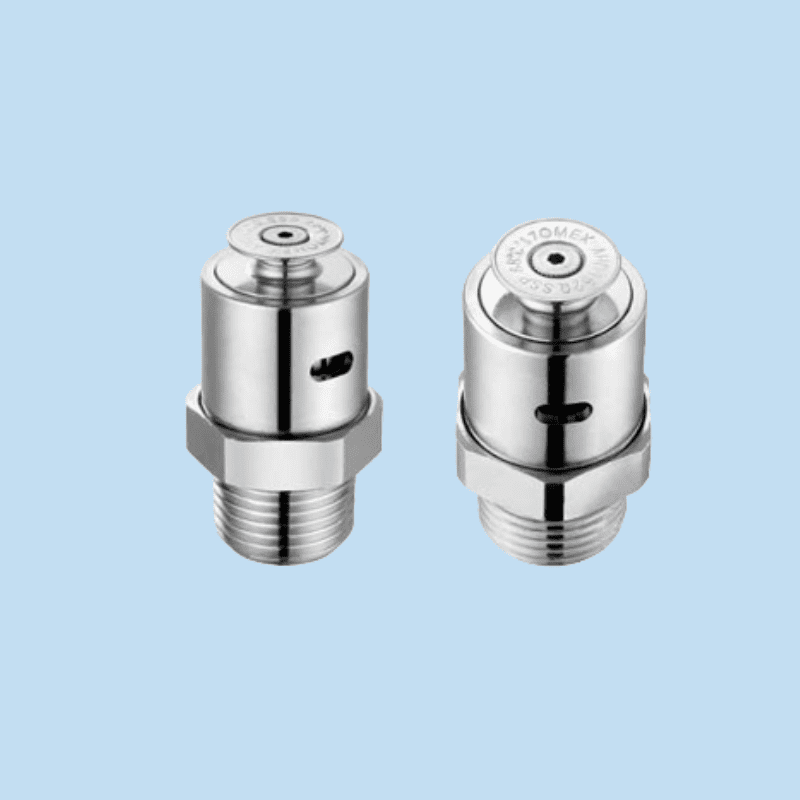

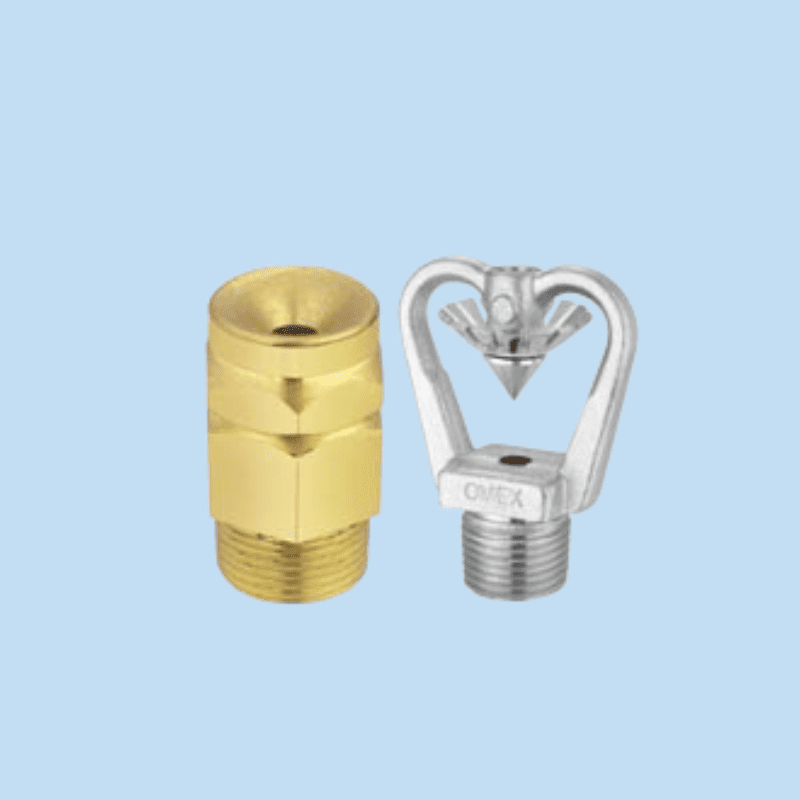

HIGH/ MEDIUM VELOCITY NOZZLE
- Model : K-22, K-24, K-28
- Finish : Chrome / Brass
- MOC : SS & Brass

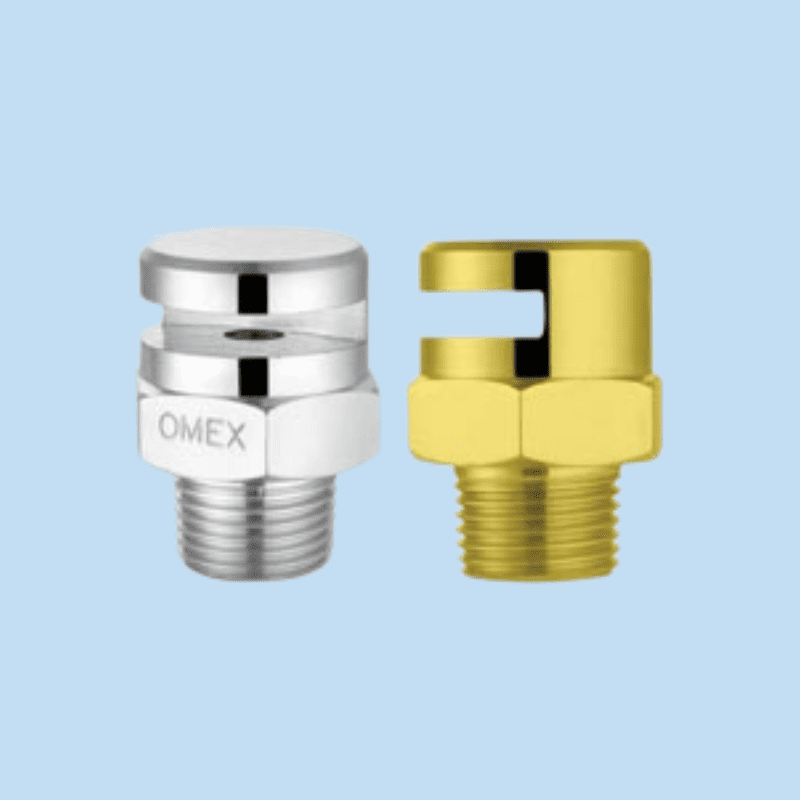

WATER CURTAIN NOZZLE
- Model : K-22, K-24, K-28
- Finish : Chrome / Brass
- MOC : SS & Brass

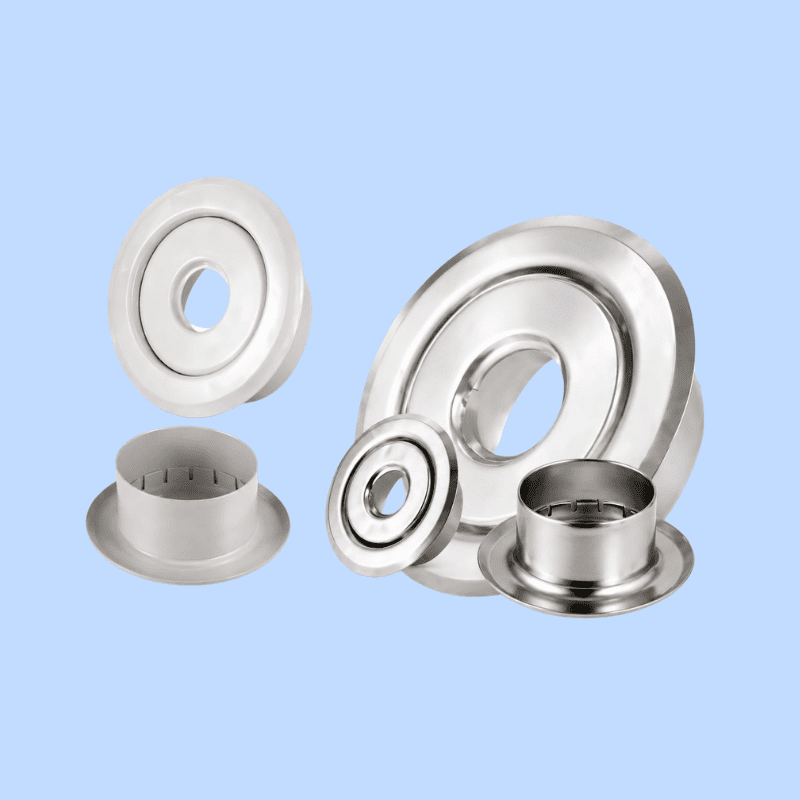

ESCUTCHEON PLATE FOR SPRINKLERS
- Material : Mild Steel
- Gauge : 16 G
- Type : Dual Type (2 pcs)
- Dia : 20 mm
- UL File No. : EX-15497
- Finish : Chrome / Powder Coated

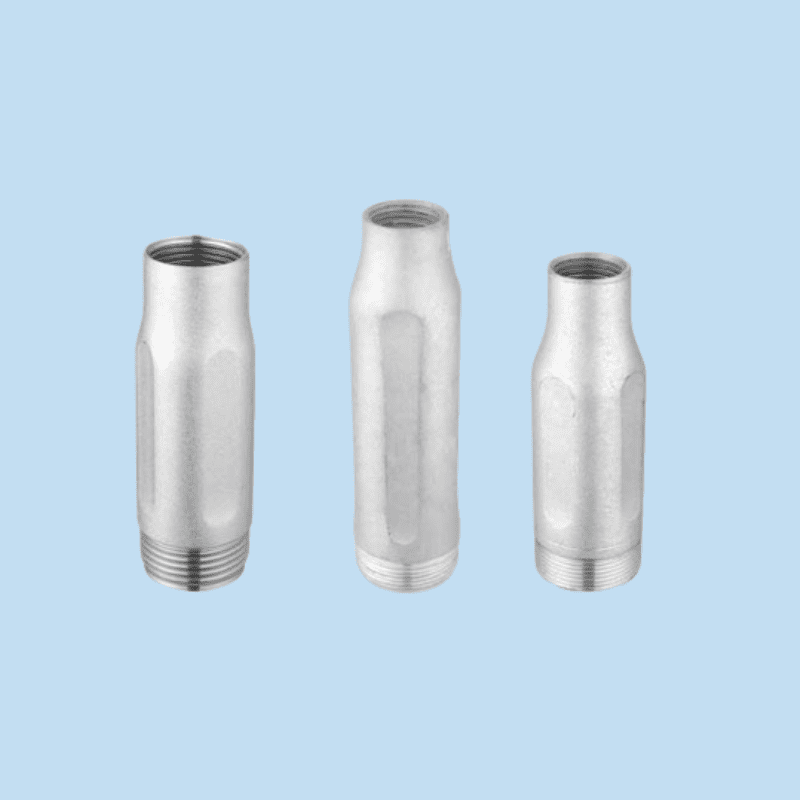

REDUCER NIPPLE FOR UL LISTED FLEXIBLE DROPS
- Inlet Size : 25mm
- Outlet Size : 15mm & 20mm

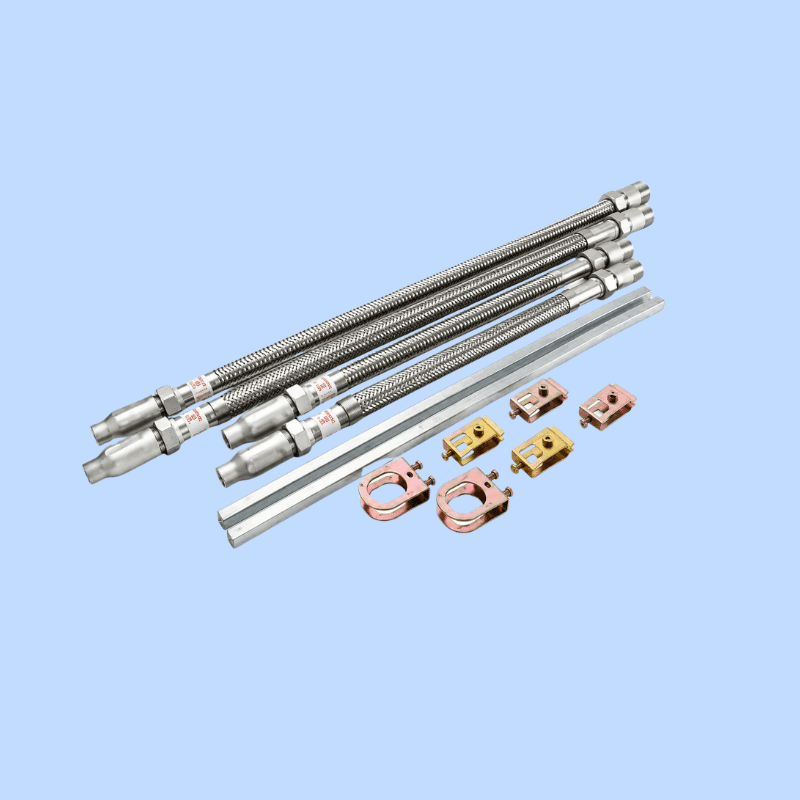

Flexible Sprinkler Hose Fittings
- Available product length and type : 700mm to 1800 (28” to 70”)
- Available square bar length : 700mm to 1500 (28” to 59”)
- Max. working pressure : 14kgf/cm2 (200psi)
- Max. ambient temperature : 1070 C (2250 F)
- Minimum installation Bending Radius : 75mm (3”)
- Bending Angles (Flow Direction) : up to 180 Degree
- Largest K factor for 1/2 inch outlet : 5.6[gpm/(psi)1/2]
- Largest K factor for 3/4 inch outlet : 14.0[gpm/(psi) 1/2]
- Intended use : Wet system and dry system
